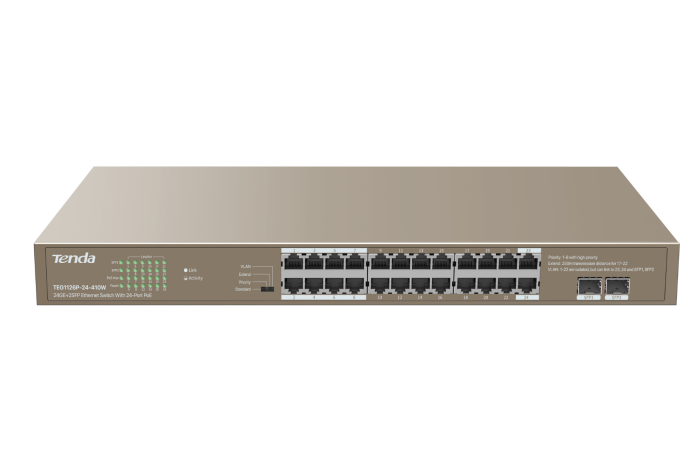

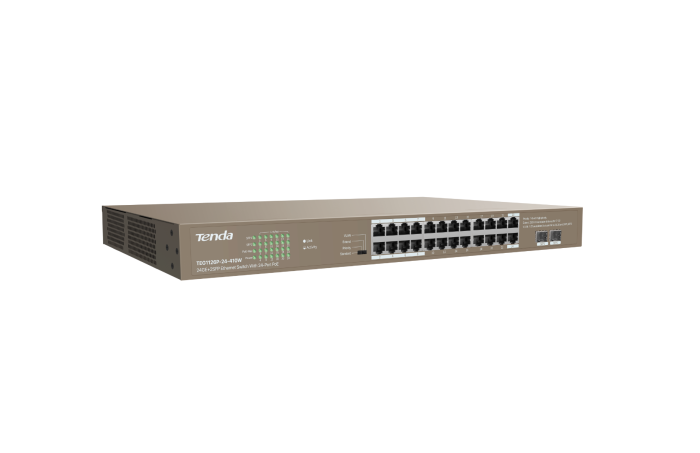

Tenda TEG1126P-24-410W 24GE+2SFP Ethernet Switch With 24-Port PoE
1
/
of
2
Tenda TEG1126P-24-410W 24GE+2SFP Ethernet Switch With 24-Port PoE
No reviews
SKU:
AED 764.50
AED 764.50
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Warranty : Brand:
Couldn't load pickup availability

24/7 Customer Support
30 Days Return
Warranty
Express Delivery
-
Vendor:
eBuy UAE
About the Product
The Tenda TEG1126P-24-410W 24-Ports Unmanaged Rackmount Gigabit PoE+ Switch, independently designed by Tenda, is compliant with IEEE 802.3af and IEEE 802.3at standards and can identify PoE-powered devices intelligently. With a maximum PoE power output of 370W, and 30W for a single port, the TEG1126P-24-410W switch can supply power when transmitting data to APs, IP cameras, and IP phones. The TEG1126P-24-410W switch supports four (4) working modes, including standard, priority, extend and VLAN modes, and is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.
Specifications
Network standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at |
LED Indicator | 24 * Link/Act LEDs 2 * SFP LED 1 * PoE-MAX LED 1 * Power LED |
Interfaces | 24*10/100/1000 Base-T ports(Data/Power) |
Transmission media | Recommended: CAT5/5e UTP or better |
Fan quantity | 2 |
Dimension | 440.0mmx284.0mmx44.0mm |
Level of protection | Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
Forwarding mode | Store-and-forward |
Switch capacity | 48 Gbps |
Packet forwarding rate | 35.7Mpps |
Buffer | 2M |
MAC address table | 8K |
PoE budget | Single port: AF: 15.4W, AT: 30W Whole device: 370W |
Power consumption | / |
Input voltage | 100-240V AC 50/60Hz |
Mounting | Desktop mounting: support Wall mounting: support Rack mounting : support |
Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
