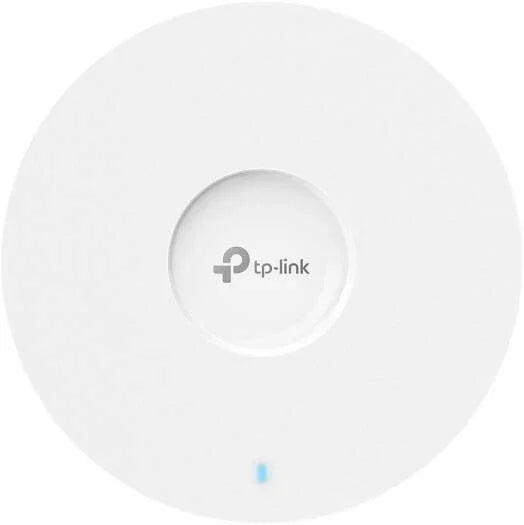

TP-Link EAP683 UR AX6000 Ceiling Mount WiFi 6 Access Point, Up to 5952 Mbps WiFi 6 Speeds, 802.3at PoE, Omada Mesh, Seamless Roaming, Omada SDN Platform, White | EAP683 UR
SKU:
AED 548.00
AED 548.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Warranty : Brand:
Couldn't load pickup availability
Order on WhatsApp
24/7 Customer Support
30 Days Return
Warranty
Express Delivery
About the Product
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
- Integrates with Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
-
Specifications

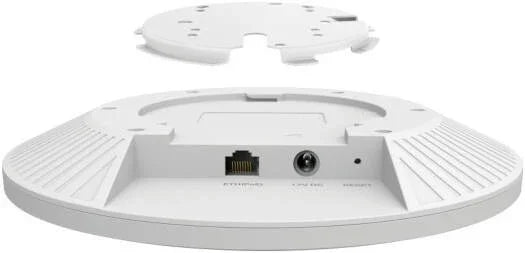

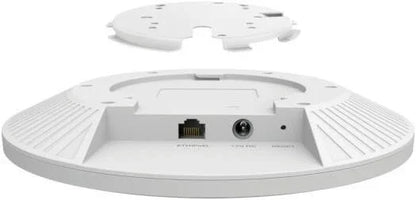

Hardware Features Interface 1× 2.5 Gigabit PoE+ Port Button Reset Power Supply • 802.3at PoE
• 12 V / 2 A DCPower Consumption • EU: 20.43W
• US: 23.69WDimensions (W x D x H) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) Antenna Type Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBiMounting Ceiling / Wall Mounting (Kits included) Wireless Features Concurrent Clients 512** Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 1148 MbpsWireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control
• QoS (WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless StatisticsWireless Security • Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseTransmission Power • CE: <20 dBm (2.4 GHz, EIRP)
<23 dBm (5 GHz, band1 & band2, EIRP)
<28 dBm (5 GHz, band3, EIRP)
• FCC: <26 dBm (2.4 GHz)
<26 dBm (5 GHz)Management Omada App Yes Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based ControllerCloud Access Yes (Requires the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes (Requires the use of Omada Cloud-Based Controller) Others Certification CE, FCC, RoHS Package Contents • EAP683 LR
• Ceiling/Wall Mounting Kits
• Installation GuideSystem Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
